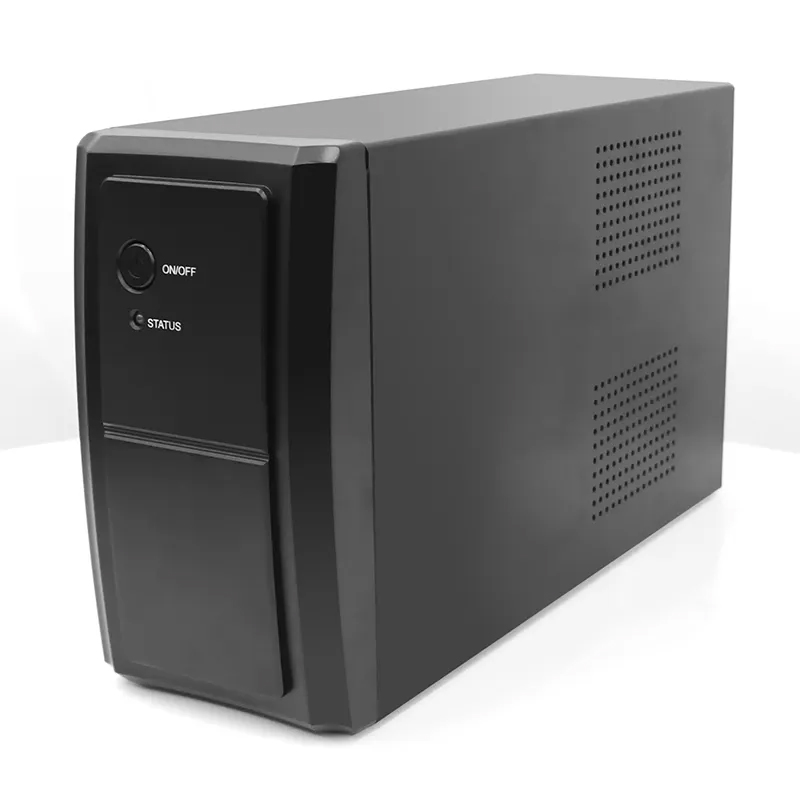

Advanced Offline Smart UPS Power Supply for Desktop Computers
Model: Offline UPS Capacity: 650VA~2000VA Wave Type: Modified Sine Wave/Simulated Sine Wave/PWM Sine Wave Brand: ROYCE ENERGY or OEM
The top smart offline ups power supply for desktop computers, ranging from 650VA to 2000VA, provides comprehensive power protection to shield connected devices from surge, overvoltage, and undervoltage harm.
Modern microprocessor control technology maintains UPS high performance and dependability while cutting down on energy wasteful operation.
If an AC mains supply is provided, the ROYCE computer's 650VA–2000VA battery-operated power backup sends the AC mains supply straight to the output load. It only uses an inverter in the event of a power outage, switching over in a matter of milliseconds to provide power to the load until the mains supply resumes.
Features of Smart Offline ups Power Supply
⚫ Low power consumptions.
⚫ Protection against high voltage.
⚫ Voltage regulation that is automatic.
⚫ The load can run solely on battery power thanks to cold start capability.
⚫ Auto restart as soon as the mainframe recovers.
⚫ Warning of low battery.
⚫ Battery charging feature in off-mode.
⚫ Suitable with minimal power loads, such as DSL modems and wifi routers.
⚫ A Smart charging mechanism extends battery life.
⚫ Incoming voltage is adjusted using Automatic Voltage Regulation (AVR).
⚫ Variants with an external battery and built-in kind, each with a varied backup time.
⚫ USB port and RS232/RJ-11/RJ-45 interface options are optional.
⚫ Providing a selection of LCD and LED display panels.
⚫ Multiple colors to select from.
Specification of Smart Offline ups Power Supply
|
Model
|
650VA
|
800VA
|
1200VA
|
1500VA
|
2000VA
|
|
Capacity
|
650VA /360W
|
800VA/480W
|
1200VA/720W
|
1500VA /900W
|
2KVA /1200W
|
|
Input
|
|||||
|
Voltage
|
220VAC
|
||||
|
AC Mains Input Voltage Range
|
145-280 VAC (same as AC mains)
|
||||
|
Frequency
|
50 Hz
|
||||
|
Output
|
|||||
|
Voltage Range(Battery Mode)
|
±10%
|
||||
|
Frequency Range(Battery Mode)
|
50 Hz ±1 Hz
|
||||
|
Transfer Time
|
＜6ms
|
||||
|
Waveform(Battery)
|
Modified sine wave
|
||||
|
Battery Type & Quantity
|
12V7.2Ah x 1
|
12V 9Ah x 1
|
12V 7.2Ah x 2
|
12V 9Ah x 2
|
12V 9Ah x 2
|
|
Battery Charging Tiime
|
6 hours charge to 90%
|
||||
|
LED Indicators
|
|||||
|
AC Mode
|
Green light
|
||||
|
Battery Mode
|
Red light flash
|
||||
|
Comprehensive Protection
|
Overload, deep discharge and over-charge protection
|
||||
|
Environment
|
|||||
|
Temperature And Humidity
|
Relative humidity 0-90% and temperature 0- 40°C (No-condensing)
|
||||
|
Noise
|
less than 40dB at one meter distance
|
||||
(note: Plastic case & Metal case are optional when ordering)
Plug & Socket Customization of Smart Offline ups Power Supply
